Custom Motion Controller Enclosure
Custom Offline CNC Motion Controller Enclosure

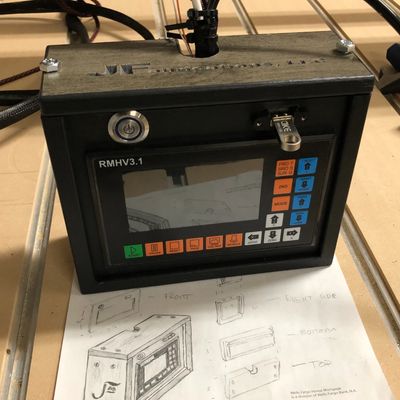

Offline Motion Controller is a RATTM MOTOR DDCSV3.1 unit that I built a custom hand-held enclosure around.
RATTM MOTOR RMHV3.1 (DDCSV3.1)
The RMHV3.1 unit does not need a Break Out Board (BOB) in order to connect to the stepper motor drivers. This unit wires directly to the stepper drivers. Unit is power off of a 24v DC power supply.
Unit comes with USB extender and flash drive.
Power Button on Enclosure
The power button on the enclosure does not connect to the RMHV3.1 uni t. It is wired to a Solid State Relay (SSR) that activates the water pump for the spindle.
Construction
The enclosure is made from a scrap piece of 1/2" plywood that has a finished veneer on both sides. The offline CNC motion controller is mounted in 3/16" hardboard that slides into the enclosure. The edges were painted to finish the edges.
